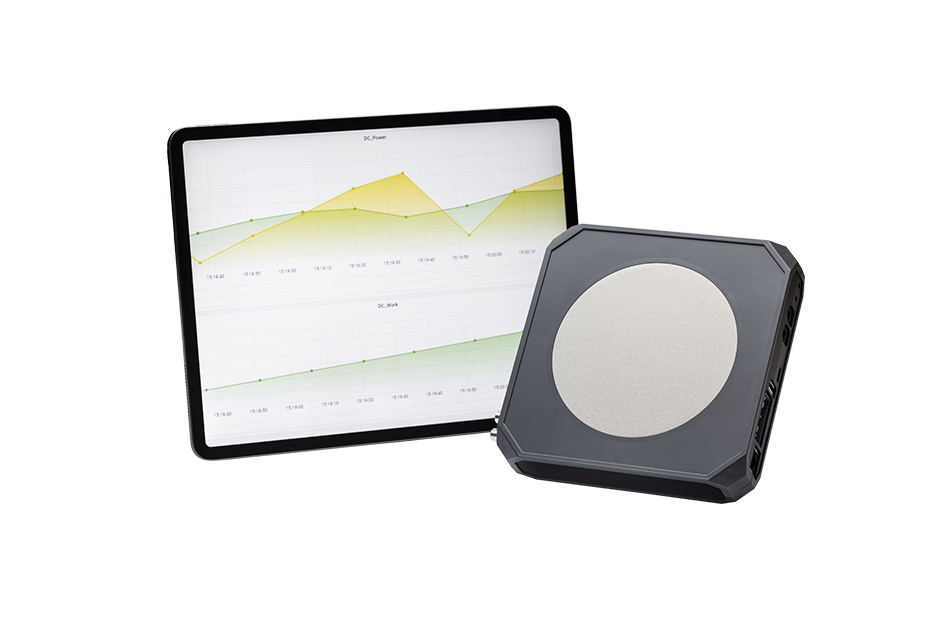

Introducing Host Monitor X (HMX)
HMX
Wake up on signal inputs
Linux platform
Modern Yocto distribution
Documentation
MX-V Features and interfaces
Host MX-5 PT
Customized
Core CPU
i.MX6 DualPlus
i.MX6 DualPlus or
QuadPlus(2xCPU@852MHz to1GHZ or 4xCPU@852MHz to1GHZ), with or without Graphics
RAM (DDR3L)
512MB to 4GB
512MB to 4GB
Program Storage
4GB eMMC
4GB to 64GB eMMC
Internal Logging
No,(eMMC)
–
External Logging
uSD Card
With or without SDcard holder
Display Ports
DVI-I
(HDMI + VGA)
Optional
Internal Display
No
–
Audio I/O
2xLine in + MIC 2xLine Out
2xLine in + MIC 2xLine Out
Audio
With or without two 3W audio amplifier
With or without two 3W audio amplifier
Camera Input
No
No
Buzzer
No
No
Wi-Fi
802.11 b/g/n/ac+BT, external antenna
802.11 b/g/n/ac+BT, external antenna
Bluetooth
Yes
(uses same anntena as Wi-Fi)
Yes
(uses same anntena as Wi-Fi)
Modem
EG-25G VOICE, two external (diversity) antennas
With or without modem
GPS
EG25-G built in, external antenna
GPS module with dead reckoning
SIM / eSIM
One micro SIM
One micro SIM, or two micro SIM, or one eSIM plus one micro SIM, or one eSIM
Ethernet
1xGbps, 1x100Mbps
1xGbps, 1x100Mbps
USB
1xUSB OTG, 1xUSB Host
1xUSB OTG, 1xUSB Host
CAN
3xCAN
2 to 3 CAN
CANFD
–
–
FlexRay
–
–
Serial Interfaces
1 RS232 /w CTS/RTS 2 RS232 (no handshake) 1 RS485, 1 J1708
–
Digital Out
10xSink/Source, 200mA typical
–
Digital In
8x “Analog 12 bit”
–
Analog Input
5x 32 Volt,
12 bit supports 4-20mA sensor output
–
Tachometer
1x 24V, up to 20 kHZ input frequence adjustable trigger level
–
Reset Button
Yes
–
Accelerometer
1x
–
Real Time Clock
Yes, 2 weeks retention
–
Super CAP
Yes
Optional lithium cell
LED
1 Power(RG), 4 custom configured (red and green), (called FUNC, Wi-Fi, GPS, MODEM)
–
Protection
IP40 / SIM och uSD andr RESET slot
–
Housing
Aluminum with black, grey or blue
Aluminum box with custom color
Ignition Signal, KL15
External input (6-32VDC)
External input (6-32VDC)
Power Button
NO, (KL15 required)
–
Power Consumption
9-32VDC typical 4W
–
Nominal Voltage
12-24V, <15W
–
Sleep function
Yes. Wake up on CAN, RS232, Tachometer, digital inputs
–
System Suspend Function
Yes. Wake up on CAN, RS232, Tachometer, digital inputs
–
Connectors Ethernet
2x RJ45
1 to 2 RJ45 connectors and/or 1 to 2 M12 connectors
